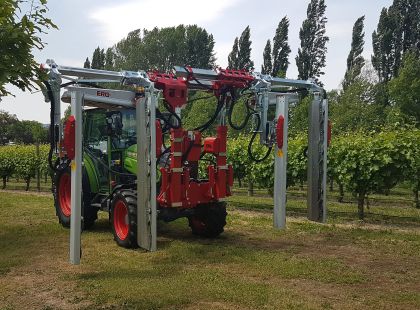

The ELITE Profi Line offers optimal visual overview during work and on public roads. Thanks to the standard comfort control, operation of the many adjustment features only requires a single-acting control device with a pressure-free return on the tractor. The height and tilting angle as well as lateral offset of the cutting units can be adjusted independently. This allows trouble-free trimming on terraced vineyards. The lift frames are then positioned close to the foliage wall. The rugged design is highly suitable for processing wide rows and large-scale vineyards.
Available trimming lengths:
Trimming width 10 – 80 cm
Stainless steel air-suction turbo blades with nonstick coating (wire rejection feature)
Comfort control with a joystick for operating all six double-acting functions, which can also be actuated in combination
Hydraulic lateral offset 40 cm per side
Trimming angle adjustment for vertical cutter beams
Deflector plates for horizontal cutter beams
Breakback protection for horizontal and vertical cutter beams with gas spring and self-actuated retraction
Two double-acting lift frames, 800 mm, with cylinders inside the frames
Base plate for holding two lift frames with independent hydraulic tilting
(tractor bracket must be ordered separately)
Precise adjustment options allow lift frame and support to be adjusted without play
Fast and easy mounting by inserting the attachment and automatic centering of bores
Easy maneuvering when leaving short rows
Dismount stand with hydraulic lifting
Hydraulic trimming width adjustment, 70 cm
Hydraulic trimming height adjustment of horizontal blades by 40 cm
1100 hydraulic frame with 800 mm stroke
Skirting blade with one or two blades (over-row, two-sided) with hydraulic motor, manually adjustable by 45°
Shoot lifter
An anodized aluminum profile was developed for the PROcut model series:
Further developed drive unit
Further-developed turbo blades
